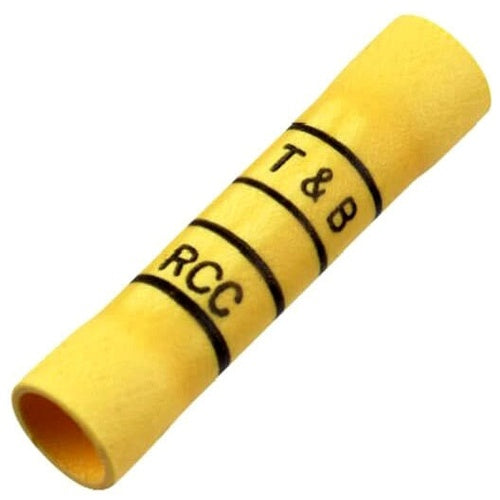

T&B RCC217 Insulated Vinyl Butt Splice, 12-10 Len 1.

Overview

T&B RCC217 Insulated Vinyl Butt Splice, 12-10 Len 1.

Product Specifications

• UPC: 78621082053
• Color: Yellow
• Material: Electro Tin Plated Copper
• Temperature Rating: 105 Deg C
• Standard Package: 1000 per Pack
• Approval: UL, CSA
• Catalog Number: RCC217
• Type: Butt, Expanded Entry
• Voltage Rating: 600 Volt
• Length: 1.31 Inch
• Barrel Outer Diameter: 0.28 Inch
• Maximum Insulation Diameter: 0.21 Inch
• Conductor Size: 12 to 10 AWG
• Insulation Type: Vinyl Insulated
• Catalog Description: EXPANDED VINYL INSULATED BUTT SPLICE, LENGTH 1.31 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION DIAMETER .210, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, MINI-PACK, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Butt, Expanded Entry Type; Electro Tin Plated Copper Material; Yellow Color; 1.31 Inch; 0.21 Inch Max. Insulation Diameter; UL, CSA Approval; 600 Volt Voltage Rating; 105 Deg C Temperature Rating; 1000 Per Pack Standard Package; 12 to 10 AWG Conductor Size; Vinyl Insulated Insulation Type; 0.28 Inch Barrel Outer Diameter
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210820538
• SKU Name: t&b rcc217
