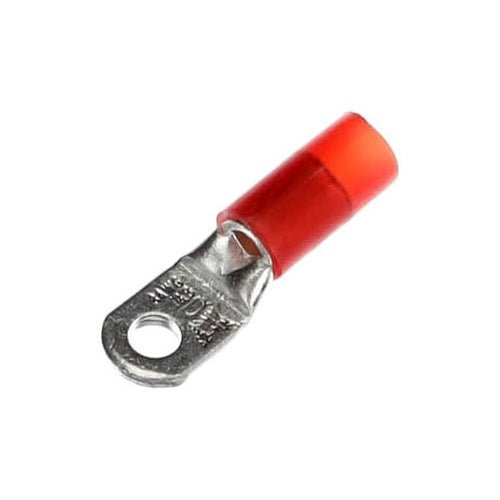

T&B RD10361 Insulated Nylon Ring Terminal 8An, No10, Red

Overview

T&B RD10361 Insulated Nylon Ring Terminal 8An, No10, Red

Product Specifications

• UPC: 78621083034
• Approval: UL 486A/B/C/310, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.4 Inch Length x 0.41 Inch Width x 0.04 Inch Thickness; Insulation Diameter 0.27 Inch; Material Electro Tin Plated Copper; Flammability Rating UL 94V-2
• Catalog Number: RD10361
• Type: Large
• Maximum Conductor Size: 8 AWG (Aircraft)
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: #10
• Temperature Rating: 105 Deg F
• Standard Package: 200
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.40 INCHES, WIDTH .41 INCHES, MAXIMUM INSULATION .270, BOLT HOLE #10, WIRE RANGE 8AN, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Large Type; Red Color; 8 AWG (Aircraft) Max. Conductor Size; UL 486A/B/C/310, CSA C22.2 Approval; 105 Deg F Temperature Rating; 200 Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.4 Inch Length X 0.41 Inch Width X 0.04 Inch Thickness; Insulation Diameter 0.27 Inch; Material Electro Tin Plated Copper; Flammability Rating UL 94V-2
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210830346
• SKU Name: t&b rd10361
