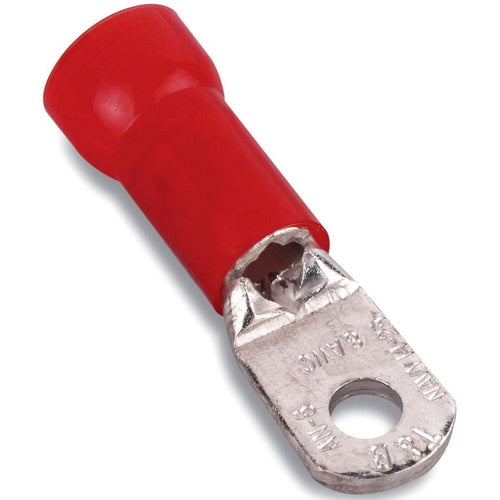

T&B RD10711 Insulated Nylon Ring Terminal 8An, 1/4, Red

Overview

T&B RD10711 Insulated Nylon Ring Terminal 8An, 1/4, Red

Product Specifications

• UPC: 78621083035
• Temperature Rating: 105 Deg C
• Standard Package: 200
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.45 Inch L x 0.45 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RD10711
• Model: RD
• Type: Standard, Funnel Entry
• Minimum Conductor Size: 9 AWG
• Maximum Conductor Size: 7 AWG (Aircraft)
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: 1/4 Inch
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.45 INCHES, WIDTH .45 INCHES, MAXIMUM INSULATION .270, BOLT HOLE 1/4 INCH, WIRE RANGE 8AN, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard, Funnel Entry Type; Red Color; 9 AWG min. Conductor Size; 7 AWG (Aircraft) Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 200 Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 1.45 Inch L X 0.45 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RD Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210830353
• SKU Name: t&b rd10711
