Product information
Overview

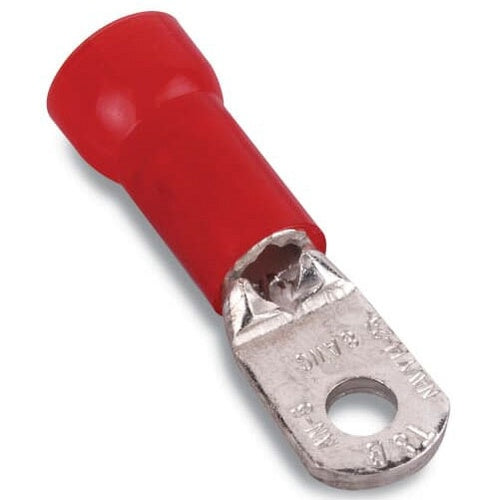

T&B RD367 Insulated Nylon Ring Terminal 8 Bolt No10 Red
Product Specifications
- UPC: 78621082059
- Approval: UL 486A/B, CSA 22.2
- Additional Information: Size 1.48 Inch Length x 0.42 Inch Width; Maximum Insulation 0.34 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: RD367
- Type: Large
- Maximum Conductor Size: 8 AWG
- Color: Red
- Insulation Type: Nylon Insulated, Funnel Entry
- Stud Size: #10
- Temperature Rating: 105 Deg C
- Standard Package: 200 per Pack
- Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.48 INCHES, WIDTH .42 INCHES, MAXIMUM INSULATION .340, BOLT HOLE #10, WIRE RANGE 8, COLOR RED, COPPER, TIN PLATED, 200 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Large Type; Red Color; 8 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 200 Per Pack Standard Package; #10 Stud Size; Nylon Insulated, Funnel Entry Insulation Type; Size 1.48 Inch Length X 0.42 Inch Width; Maximum Insulation 0.34 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210820590
- SKU Name: t&b rd367
