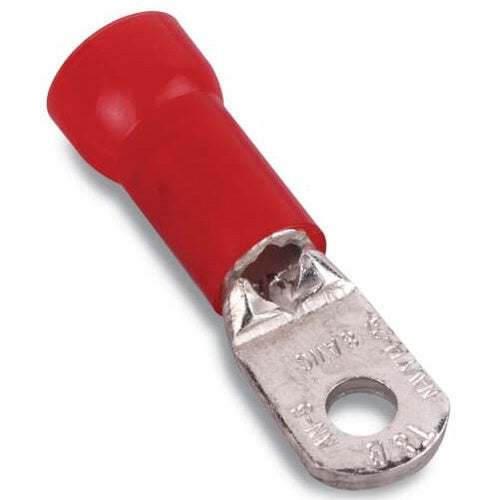

T&B RD737 Insulated Nylon Ring Terminal 8 Bolt 3/8" Red

Overview

T&B RD737 Insulated Nylon Ring Terminal 8 Bolt 3/8" Red

Product Specifications

• UPC: 78621082064
• Temperature Rating: 105 Deg C
• Standard Package: 2000 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.63 Inch Length x 0.57 Inch Width x 0.04 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: RD737
• Brand Name: Sta-Kon
• Type: Standard, Funnel Entry
• Minimum Conductor Size: 9 AWG
• Maximum Conductor Size: 7 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: 3/8 Inch
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.63 INCHES, WIDTH .57 INCHES, MAXIMUM INSULATION .340, BOLT HOLE 3/8 INCH, WIRE RANGE 8, COLOR RED, COPPER, TIN PLATED, 200 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard, Funnel Entry Type; Red Color; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 2000 Per Outer Pack Standard Package; 3/8 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.63 Inch Length X 0.57 Inch Width X 0.04 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210820644
• SKU Name: t&b rd737
