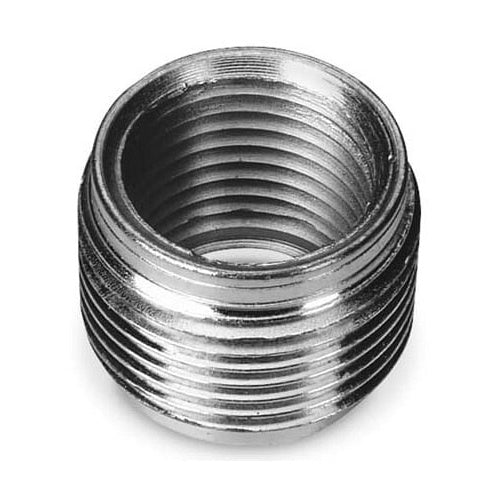

T&B RE43-TB 1-1/4" - 1" Reducing Bushing Explosion-Proof

Overview

T&B RE43-TB 1-1/4" - 1" Reducing Bushing Explosion-Proof

Product Specifications

• UPC: 78621005882
• Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof; Used On Heavy Wall Conduit System; Application Hazardous and Non-Hazardous Location
• Catalog Number: RE43-TB
• Model: RE
• Type: Round, Male/Female Threaded
• Large End Trade Size: 1-1/4 Inch
• Small End Trade Size: 1 Inch
• Enclosure: Class I Div 1 and 2 Group A/B/C/D, Class II Div 1 Group E/F/G, Class III Div 1 and 2
• Material: Zinc Plated Clear Chromated Steel
• Approval: UL 886/E193396, CSA C22.2
• Catalog Description: 1-1/4 INCH TO 1 INCH REDUCING BUSHING, STEEL ZINC PLATED
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Round, Male/Female Threaded Type; Zinc Plated Clear Chromated Steel Material; 1 Inch Small End Trade Size; 1-1/4 Inch Large End Trade Size; UL 886/E193396, CSA C22.2 Approval; Class I Div 1 and 2 Group A/B/C/D, Class II Div 1 Group E/F/G, Class III Div 1 and 2 Enclosure; Constructional Feature Explosionproof, Dust-Ignitionproof; Used on Heavy Wall Conduit System; Application Hazardous and Non-Hazardous Location; RE Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210058825
• SKU Name: t&b re43tb

Resources

• Product Spec Sheet
