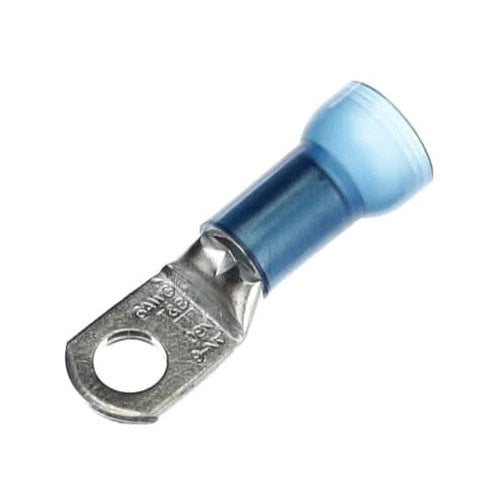

T&B RE6-14 Insulated Nylon Ring Terminal 6 Bolt 1/4" Blue

Overview

T&B RE6-14 Insulated Nylon Ring Terminal 6 Bolt 1/4" Blue

Product Specifications

• UPC: 78621087863
• Temperature Rating: 105 Deg C
• Standard Package: 20
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.65 Inch L x 0.49 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RE6-14
• Model: RE
• Type: Standard, Funnel Entry
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 5 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: 1/4 Inch
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.65 INCHES, WIDTH .49 INCHES, MAXIMUM INSULATION .420, BOLT HOLE 1/4 INCH, WIRE RANGE 6, COLOR BLUE, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard, Funnel Entry Type; Blue Color; 6 AWG min. Conductor Size; 5 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 20 Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 1.65 Inch L X 0.49 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RE Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210878638
• SKU Name: t&b re614
