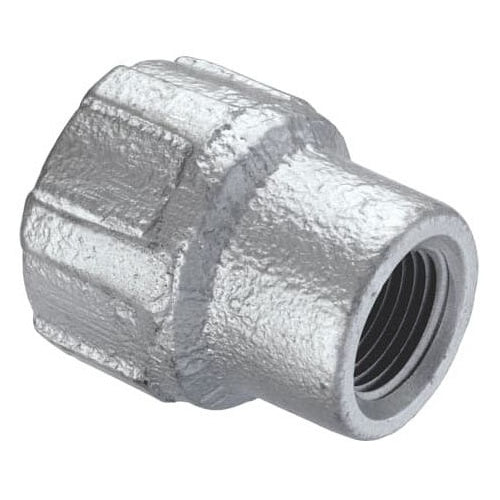

T&B REC32-TB 1"-3/4" Reducing Coupling Explosion-Proof

Overview

T&B REC32-TB 1"-3/4" Reducing Coupling Explosion-Proof

Product Specifications

• UPC: 78621005864
• Approval: UL, CSA
• Additional Information: Application Hazardous Location, Non-Hazardous Location; Constructional Feature Explosionproof, Dust-Ignitionproof
• Catalog Number: REC32-TB
• Model: REC
• Large End Trade Size: 1 Inch Threaded
• Small End Trade Size: 3/4 Inch-14 TPI
• Material: Zinc Plated Iron
• End Style: Funnel
• Size: 2 Inch L
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III Div 1 and 2
• Catalog Description: FUNNEL SHAPED REDUCERS FOR HAZARDOUS AND NON HAZARDOUS LOCATIONS, IRON ZINC PLATED, A (NPT) 1 INCH, B (NPT) 3/4 INCH 14
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated Iron Material; 2 Inch L Size; 3/4 Inch-14 TPI Small End Trade Size; 1 Inch Threaded Large End Trade Size; UL, CSA Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III Div 1 and 2 Enclosure; Funnel End Style; Application Hazardous Location, Non-Hazardous Location; Constructional Feature Explosionproof, Dust-Ignitionproof; REC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Reducer Coupling
• Unspsc: 39131707
• UPC 12 Digit: 786210058641
• SKU Name: t&b rec32tb
