Product information
Overview

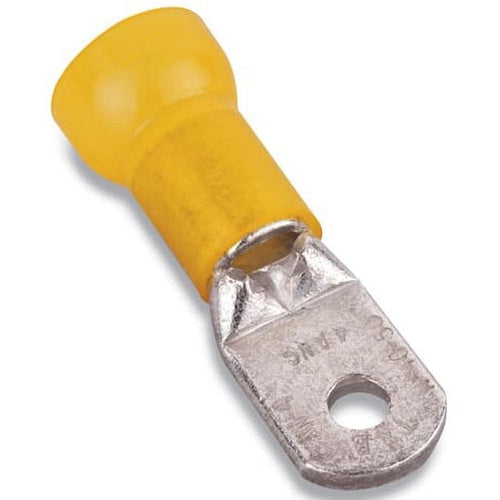

T&B RF4-10 Insulated Nylon Ring Terminal 4 Bolt No10 Yellow
Product Specifications
- UPC: 78621087210
- Approval: UL 486A/B, CSA 22.2
- Additional Information: Size 1.76 Inch Length x 0.56 Inch Width; Maximum Insulation 0.51 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: RF4-10
- Type: Large
- Maximum Conductor Size: 4 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated, Funnel Entry
- Stud Size: #10
- Temperature Rating: 105 Deg C
- Standard Package: 15 per Pack
- Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.76 INCHES, WIDTH .56 INCHES, MAXIMUM INSULATION .510, BOLT HOLE #10, WIRE RANGE 4, COLOR YELLOW, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Large Type; Yellow Color; 4 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 15 Per Pack Standard Package; #10 Stud Size; Nylon Insulated, Funnel Entry Insulation Type; Size 1.76 Inch Length X 0.56 Inch Width; Maximum Insulation 0.51 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210872100
- SKU Name: t&b rf410
