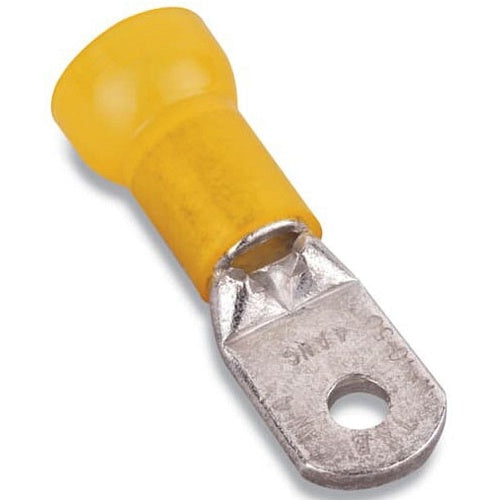

T&B RF4-38 Insulated Nylon Ring Terminal 4 Bolt 3/8" Yellow

Overview

T&B RF4-38 Insulated Nylon Ring Terminal 4 Bolt 3/8" Yellow

Product Specifications

• UPC: 78621087869
• Temperature Rating: 105 Deg C
• Standard Package: 150 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.84 Inch Length x 0.62 Inch Width x 0.04 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: RF4-38
• Brand Name: Sta-Kon
• Type: Standard, Funnel Entry
• Minimum Conductor Size: 4 AWG
• Maximum Conductor Size: 3 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: 3/8 Inch
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.84 INCHES, WIDTH .62 INCHES, MAXIMUM INSULATION .510, BOLT HOLE 3/8 INCH, WIRE RANGE 4, COLOR YELLOW, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard, Funnel Entry Type; Yellow Color; 4 AWG min. Conductor Size; 3 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 150 Per Outer Pack Standard Package; 3/8 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.84 Inch Length X 0.62 Inch Width X 0.04 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210878690
• SKU Name: t&b rf438
