Product information
Overview

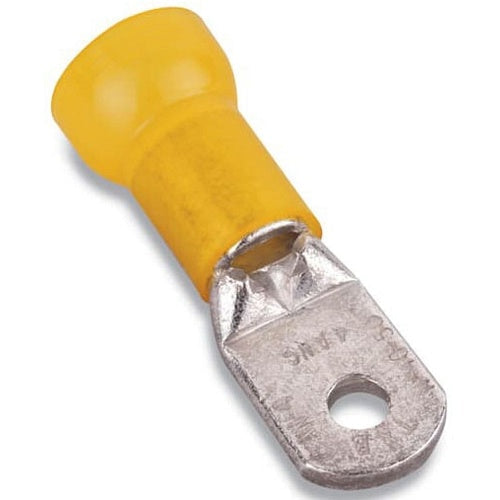

T&B RF4-516 Insulated Nylon Ring Terminal 4 Bolt 5/16 Yellow
Product Specifications
- UPC: 78621087214
- Approval: UL 486A/B, CSA 22.2
- Additional Information: Size 1.84 Inch Length x 0.62 Inch Width; Maximum Insulation 0.51 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: RF4-516
- Type: Large
- Maximum Conductor Size: 4 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated, Funnel Entry
- Stud Size: 5/16 Inch
- Temperature Rating: 105 Deg C
- Standard Package: 15 per Pack
- Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 1.84 INCHES, WIDTH .62 INCHES, MAXIMUM INSULATION .510, BOLT HOLE 5/16 INCH, WIRE RANGE 4, COLOR YELLOW, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Large Type; Yellow Color; 4 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 15 Per Pack Standard Package; 5/16 Inch Stud Size; Nylon Insulated, Funnel Entry Insulation Type; Size 1.84 Inch Length X 0.62 Inch Width; Maximum Insulation 0.51 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210872148
- SKU Name: t&b rf4516
