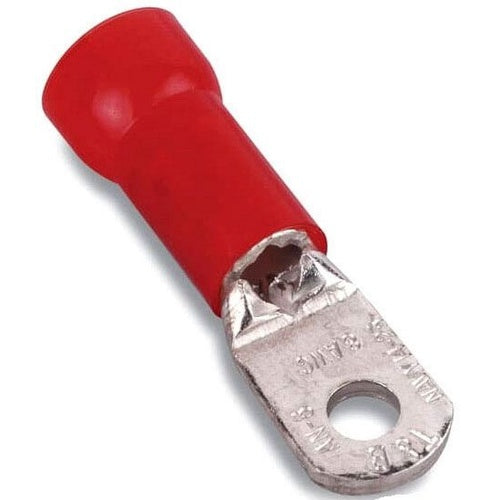

T&B RG2-12 Insulated Nylon Ring Terminal 2 Bolt 1/2" Red

Overview

T&B RG2-12 Insulated Nylon Ring Terminal 2 Bolt 1/2" Red

Product Specifications

• UPC: 78621087216
• Temperature Rating: 105 DEG C
• Standard Package: 10
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 2.35 INCH LENGTH X 0.8 INCH WIDTH X 0.05 INCH THICK; BRAZED SEAM BARREL; FINISH ELECTROPLATED TIN
• Catalog Number: RG2-12
• Brand Name: Sta-Kon.
• Model: RG
• Type: STANDARD
• Minimum Conductor Size: 2 AWG
• Maximum Conductor Size: 1 AWG
• Insulation Type: NYLON INSULATED
• Stud Size: 1/2 INCH
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 2.35 INCHES, WIDTH 0.80 INCHES, MAX INSULATION 0.588, BOLT HOLE 1/2 INCH, WIRE RANGE 2, COLOR RED, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; 2 AWG min. Conductor Size; 1 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 10 Standard Package; 1/2 Inch Stud Size; Nylon Insulated Insulation Type; Sta-Kon. Brand; Dimension 2.35 Inch Length X 0.8 Inch Width X 0.05 Inch Thick; Brazed Seam Barrel; Finish Electroplated Tin; RG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210872162
• SKU Name: t&b rg212
