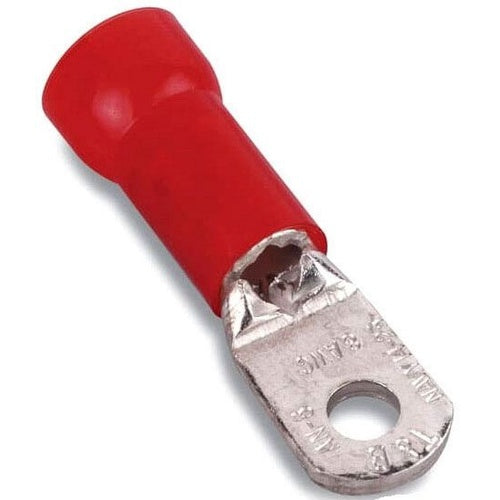

T&B RG2-38 Insulated Nylon Ring Terminal 2 Bolt 3/8" Red

Overview

T&B RG2-38 Insulated Nylon Ring Terminal 2 Bolt 3/8" Red

Product Specifications

• UPC: 78621087218
• Temperature Rating: 105 Deg C
• Standard Package: 10
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 2.15 Inch L x 0.69 Inch W x 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RG2-38
• Model: RG
• Type: Standard
• Minimum Conductor Size: 2 AWG
• Maximum Conductor Size: 1 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: 3/8 Inch
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 2.15 INCHES, WIDTH .69 INCHES, MAXIMUM INSULATION .588, BOLT HOLE 3/8 INCH, WIRE RANGE 2, COLOR RED, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; Red Color; 2 AWG min. Conductor Size; 1 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 10 Standard Package; 3/8 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 2.15 Inch L X 0.69 Inch W X 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210872186
• SKU Name: t&b rg238
