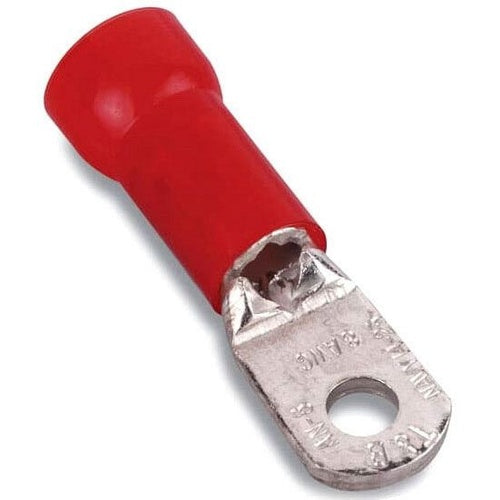

T&B RG727 Insulated Nylon Ring Terminal 2 Bolt 5/16" Red

Overview

T&B RG727 Insulated Nylon Ring Terminal 2 Bolt 5/16" Red

Product Specifications

• UPC: 78621082107
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 2.15 Inch Length x 0.69 Inch Width; Insulation Diameter 0.588 Inch; Material Copper; Finish Electro Tin Plated
• Catalog Number: RG727
• Type: Large, Funnel Entry
• Maximum Conductor Size: 2 AWG
• Color: Red
• Insulation Type: Nylon
• Stud Size: 5/16 Inch
• Standard Package: 500 per Outer Pack
• Approval: UL, CSA
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 2.15 INCHES, WIDTH .69 INCHES, MAXIMUM INSULATION .588, BOLT HOLE 5/16 INCH, WIRE RANGE 2, COLOR RED, COPPER, TIN PLATED, 50 PACK
• Category: Large Terminals & Connectors
• Full Technical Description: Large, Funnel Entry Type; Red Color; 2 AWG Max. Conductor Size; UL, CSA Approval; 500 Per Outer Pack Standard Package; 5/16 Inch Stud Size; Nylon Insulation Type; Voltage Rating 600 Volt; Overall Dimension 2.15 Inch Length X 0.69 Inch Width; Insulation Diameter 0.588 Inch; Material Copper; Finish Electro Tin Plated
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210821078
• SKU Name: t&b rg727
