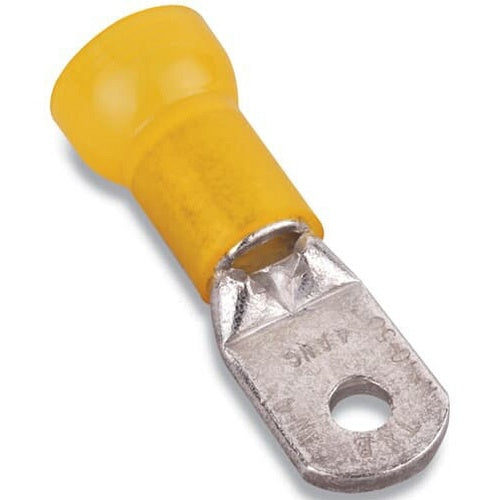

T&B RK717 Insulated Nylon Ring Terminal 3/0, 1/4, Yellow

Overview

T&B RK717 Insulated Nylon Ring Terminal 3/0, 1/4, Yellow

Product Specifications

• UPC: 78621082137
• Standard Package: 100
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 2.6 INCH LENGTH X 0.93 INCH WIDTH X 0.06 INCH THICK; FINISH ELECTROPLATED TIN
• Catalog Number: RK717
• Brand Name: Sta-Kon.
• Model: RK
• Type: STANDARD
• Maximum Conductor Size: 3/0 AWG
• Insulation Type: NYLON INSULATED
• Stud Size: 1/4 INCH
• Temperature Rating: 105 DEG C
• Catalog Description: NYLON INSULATED LARGE RING TERMINAL, LENGTH 2.60 INCHES, WIDTH .93 INCHES, MAXIMUM INSULATION .765, BOLT HOLE 1/4 INCH, WIRE RANGE 3/0, COLOR YELLOW, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; 3/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 100 Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Sta-Kon. Brand; Dimension 2.6 Inch Length X 0.93 Inch Width X 0.06 Inch Thick; Finish Electroplated Tin; RK Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210821375
• SKU Name: t&b rk717
