Product information
Overview

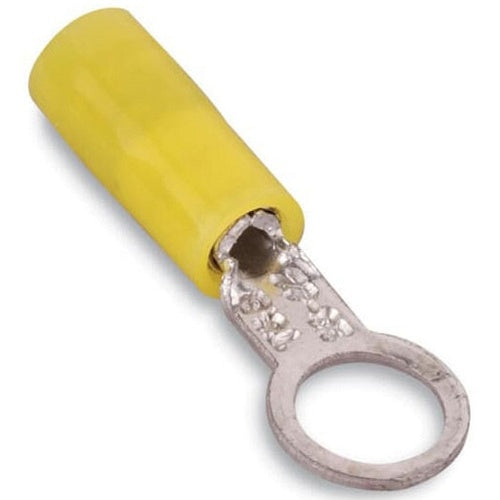

T&B RZ22-10 Insulated Nylon Ring Terminal 26-22, No10, Yellow
Product Specifications
- UPC: 78621080456
- Temperature Rating: 105 Deg C
- Standard Package: 500 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 3/4 Inch Length x 1/4 Inch Width x 0.02 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: RZ22-10
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 26 AWG
- Maximum Conductor Size: 22 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated
- Stud Size: #10
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .75 INCHES, WIDTH .25 INCHES, MAXIMUM INSULATION .083, BOLT HOLE #10, WIRE RANGE #26-#22 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Yellow Color; 26 AWG min. Conductor Size; 22 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 3/4 Inch Length X 1/4 Inch Width X 0.02 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210804569
- SKU Name: t&b rz2210
