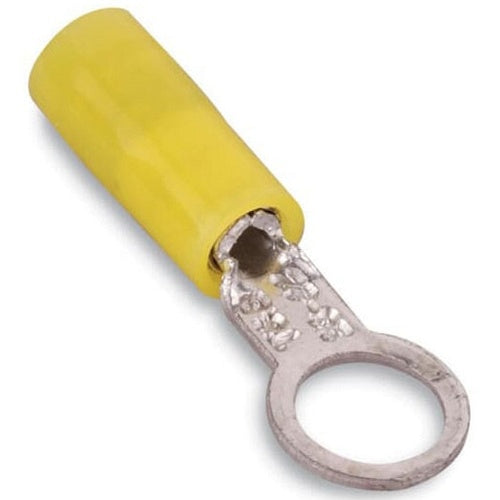

T&B RZ22-4 Insulated Nylon Ring Terminal 26-22, No4, Yellow

Overview

T&B RZ22-4 Insulated Nylon Ring Terminal 26-22, No4, Yellow

Product Specifications

• UPC: 78621080453
• Temperature Rating: 105 Deg C
• Standard Package: 100
• Approval: CSA 22.2
• Additional Information: Dimension 0.65 Inch L x 0.21 Inch W x 0.02 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RZ22-4
• Model: RZ
• Type: Standard
• Minimum Conductor Size: 26 AWG
• Maximum Conductor Size: 22 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: #4
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .65 INCHES, WIDTH .21 INCHES, MAXIMUM INSULATION .083, BOLT HOLE #4, WIRE RANGE #26-#22 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 26 AWG min. Conductor Size; 22 AWG Max. Conductor Size; CSA 22.2 Approval; 105 Deg C Temperature Rating; 100 Standard Package; #4 Stud Size; Nylon Insulated Insulation Type; Dimension 0.65 Inch L X 0.21 Inch W X 0.02 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RZ Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210804538
• SKU Name: t&b rz224
