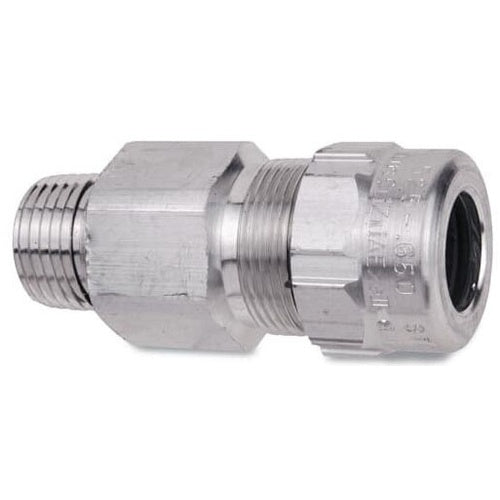

T&B ST050-465 Aluminum Jacketed Fitting Hub 1/2" .725-.885

Overview

High-efficiency performance for demanding applications

Product Specifications

• UPC: 78621071284
• Constructional Feature: Watertight
• Material: Aluminum
• Application: Hazardous Location
• Approval: UL E38947, CSA 23086/4484
• Additional Information: Color Silver
• Catalog Number: ST050-465
• Brand Name: T&B
• Hub Size: 1/2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 0.725 to 0.885 Inch
• Diameter: 1.633 Inch
• Length: 2.133 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1/2 INCH. RANGE OVER JACKET FROM 0.725 - 0.885 INCH.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Aluminum Material; 2.133 Inch; 1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 0.725 to 0.885 Inch Cable Size; UL E38947, CSA 23086/4484 Approval; Hazardous Location Application; 1.633 Inch Diameter; Watertight; Bushing, Gland Nut Throat Type; Color Silver
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210712840
• SKU Name: T&B ST050465
