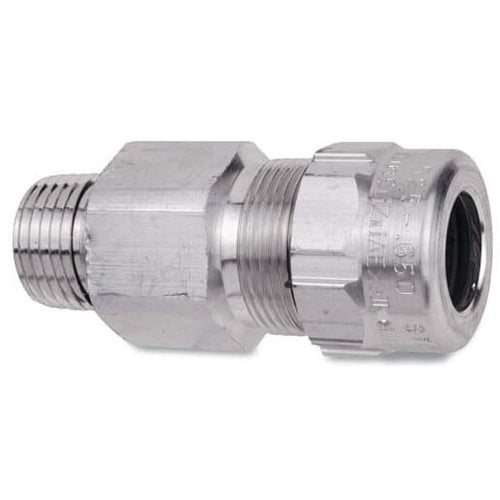

T&B ST125-550 Aluminum Jacketed Fitting Hub 1-1/4" 1.500-1.625

Overview

T&B ST125-550 Aluminum Jacketed Fitting Hub 1-1/4" 1.500-1.625

Product Specifications

• UPC: 78621071290
• Diameter: 2.824 Inch
• Length: 3.282 Inch
• Constructional Feature: Watertight
• Material: Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST125-550
• Brand Name: Star Teck[R]
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 1-1/4 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 1.5 to 1.625 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1-1/4 INCH. RANGE OVER JACKET FROM 1.500 - 1.625 INCH.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight, Threaded Male Type; Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing Material; 3.282 Inch; 1-1/4 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 1.5 to 1.625 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 2.824 Inch Diameter; Watertight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210712901
• SKU Name: t&b st125550

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
