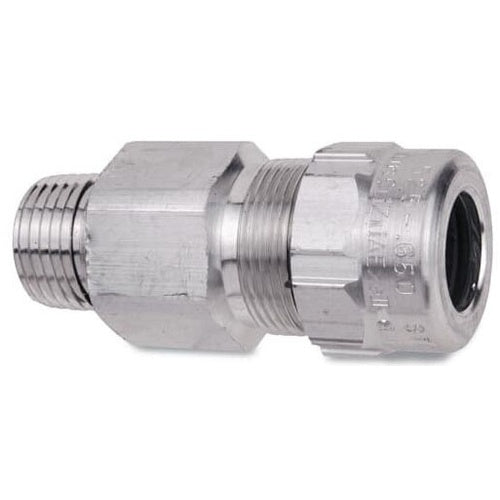

T&B ST200-476 Aluminum Jacketed Fitting Hub 2" 2.500-2.750

Overview

High strength-to-weight ratio for optimal performance, Corrosion-resistant finish for extended lifespan, Easy installation with versatile mounting options

Product Specifications

• UPC: 78621071297
• Diameter: 4.02 Inch
• Length: 3.64 Inch
• Constructional Feature: Watertight
• Material: Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST200-476
• Brand Name: Star Teck[R]
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 2.5 to 2.75 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 2 INCHES. RANGE OVER JACKET FROM 2.500-2.750 INCHES.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight, Threaded Male Type; Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing Material; 3.64 Inch; 2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 2.5 to 2.75 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 4.02 Inch Diameter; Watertight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210712970
• SKU Name: T&B ST200476
