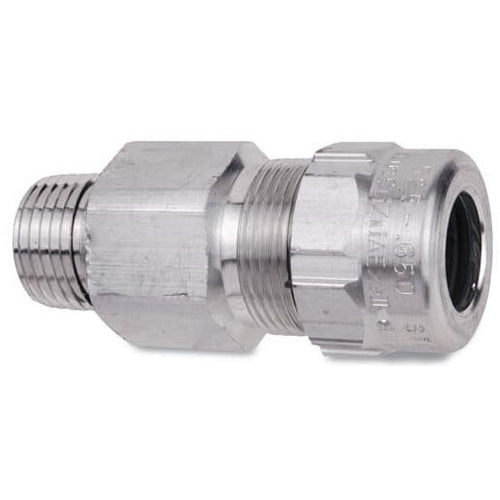

T&B ST200-474 Aluminum Jacketed Fitting Hub 2" 2.100-2.375

Overview

T&B ST200-474 Aluminum Jacketed Fitting Hub 2" 2.100-2.375

Product Specifications

• UPC: 78621071295
• Diameter: 3.62 Inch
• Length: 3.64 Inch
• Constructional Feature: Water Tight
• Material: Aluminum (Body/Gland Nut), Stainless Steel (Grounding Ring/Retaining Ring), Neoprene (Bushing)
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST200-474
• Brand Name: T&B
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 2.1 to 2.375 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 2 INCHES. RANGE OVER JACKET FROM 2.100 - 2.375 INCHES.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight, Threaded Male Type; Aluminum (Body/Gland Nut), Stainless Steel (Grounding Ring/Retaining Ring), Neoprene (Bushing) Material; 3.64 Inch; 2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 2.1 to 2.375 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 3.62 Inch Diameter; Water Tight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210712956
• SKU Name: t&b st200474

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
