Overview

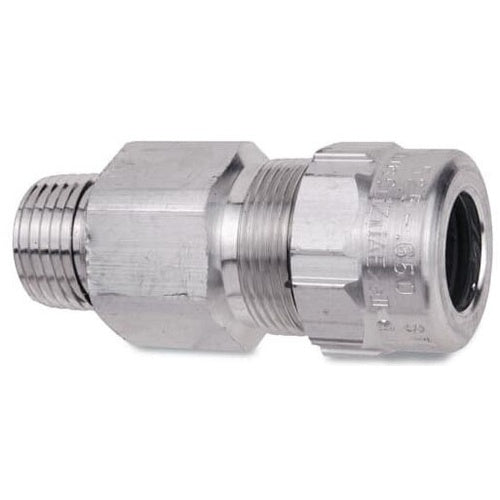

T&B ST200-551 Aluminum Jacketed Fitting Hub 2" 1.900-2.187

Product Specifications

• UPC: 78621071294
• Diameter: 3.62 Inch
• Length: 3.64 Inch
• Constructional Feature: Water Tight
• Material: Aluminum (Body/Gland Nut), Stainless Steel (Grounding Ring/Retaining Ring), Neoprene (Bushing)
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST200-551
• Brand Name: T&B
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 1.9 to 2.187 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 2 INCHES. RANGE OVER JACKET FROM 1.900 - 2.187 INCHES.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Straight, Threaded Male Type; Aluminum (Body/Gland Nut), Stainless Steel (Grounding Ring/Retaining Ring), Neoprene (Bushing) Material; 3.64 Inch; 2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 1.9 to 2.187 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 3.62 Inch Diameter; Water Tight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210712949
• SKU Name: t&b st200551

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
