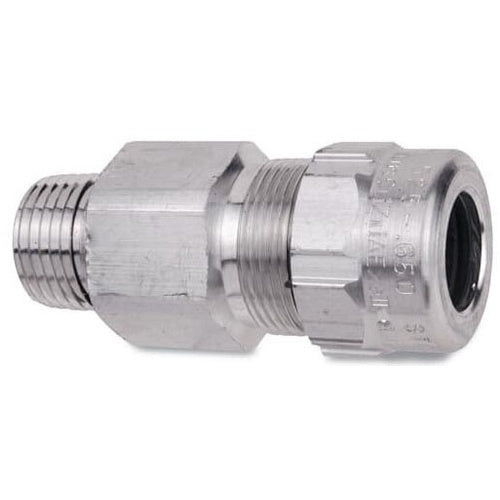

T&B ST250-477 Aluminum Jacketed Fitting Hub Size 2-1/2"

Overview

T&B ST250-477 Aluminum Jacketed Fitting Hub Size 2-1/2"

Product Specifications

• UPC: 78621087744
• Diameter: 4.75 Inch
• Length: 4.7 Inch
• Constructional Feature: Watertight
• Material: Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST250-477
• Brand Name: Star Teck[R]
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 2-1/2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 2.38 to 2.64 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 2-1/2 INCHES. RANGE OVER JACKET FROM 2.380 - 2.640 INCHES.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Straight, Threaded Male Type; Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing Material; 4.7 Inch; 2-1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 2.38 to 2.64 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 4.75 Inch Diameter; Watertight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210877440
• SKU Name: t&b st250477

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
