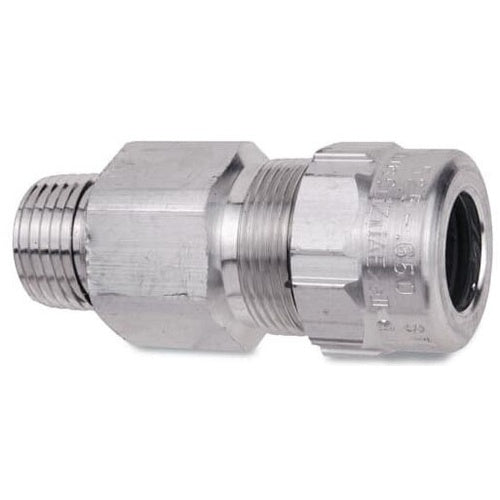

T&B ST300-481 Aluminum Jacketed Fitting Hub 3" 3.210-3.480

Overview

T&B ST300-481 Aluminum Jacketed Fitting Hub 3" 3.210-3.480

Product Specifications

• UPC: 78621087752
• Diameter: 5.48 Inch
• Length: 4.79 Inch
• Constructional Feature: Water Tight
• Material: Aluminum (Body/Gland Nut), Stainless Steel (Grounding Ring/Retaining Ring), Neoprene (Bushing)
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST300-481
• Brand Name: T&B
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 3 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 3.21 to 3.48 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 3 INCHES. RANGE OVER JACKET FROM 3.210 - 3.480 INCHES.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Straight, Threaded Male Type; Aluminum (Body/Gland Nut), Stainless Steel (Grounding Ring/Retaining Ring), Neoprene (Bushing) Material; 4.79 Inch; 3 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 3.21 to 3.48 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 5.48 Inch Diameter; Water Tight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210877525
• SKU Name: t&b st300481
