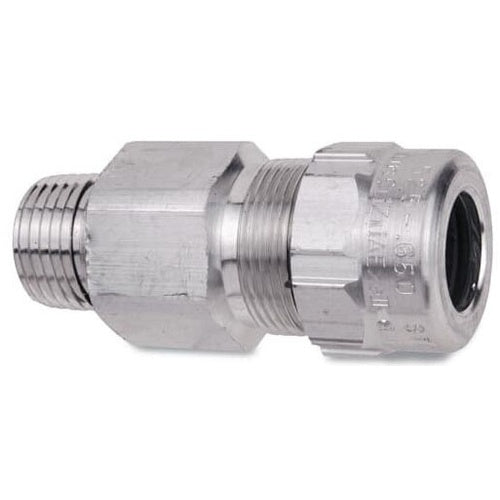

T&B ST400-486 Aluminum Jacketed Fitting Hub 4" 4.120-4.340

Overview

T&B ST400-486 Aluminum Jacketed Fitting Hub 4" 4.120-4.340

Product Specifications

• UPC: 78621087764
• Diameter: 6.435 Inch
• Length: 4.84 Inch
• Constructional Feature: Watertight
• Material: Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• Catalog Number: ST400-486
• Brand Name: Star Teck[R]
• Model: ST
• Type: Straight, Threaded Male
• Hub Size: 4 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 4.12 to 4.34 Inch
• Catalog Description: STAR TECK ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 4 INCHES. RANGE OVER JACKET FROM 4.120 - 4.340 INCHES.
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded Male Type; Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing Material; 4.84 Inch; 4 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 4.12 to 4.34 Inch Cable Size; UL, CSA Approval; Hazardous Location, Ordinary Location Application; 6.435 Inch Diameter; Watertight; Bushing, Gland Nut Throat Type; ST Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210877648
• SKU Name: t&b st400486
