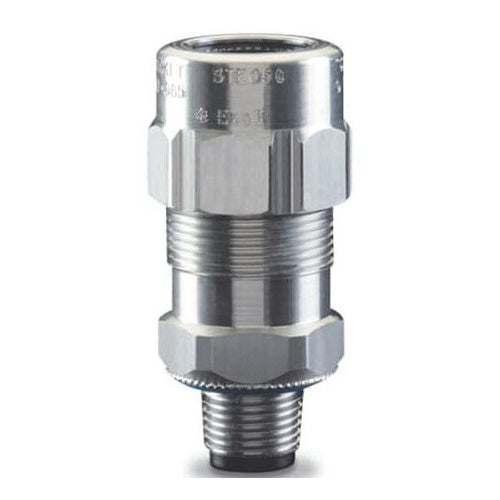

T&B STE075 Aluminum Extreme Fitting Teck Cable- 3/4"

Product Specifications

• UPC: 78621082259
• Diameter: 2.08 Inch
• Length: 2.9 Inch
• Constructional Feature: Water Tight
• Material: Aluminum (Body/Gland Nut), Nickel Plated Stainless Steel/Bronze (Grounding Ring), Elastomeric (Bushing/Collar Ring/Sealing Ring), Nylon (Removable Armor Stop)
• Application: Ordinary Location, Oil and Gas Industry
• Approval: UL, CSA (Canada and US), CSA C22.2
• Additional Information: RoHS Compliant; Armor Cable Diameter 0.78 to 1.125 Inch; Strip Length 1-1/4 Inch; Color Silver; Gland Torque 600 Inch-Pound; Enclosure Rating Class I Div 2, NEMA 6P; Temperature Rating -40 to 194 Deg F
• Catalog Number: STE075
• Brand Name: T&B
• Model: STE
• Type: Threaded Male
• Hub Size: 3/4 Inch
• Throat Type: Bushing
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 0.86 to 1.205 Inch
• Catalog Description: STAR TECK EXTREME ALUMINUM JACKETED CABLE FITTING. HUB SIZE 3/4 INCH. RANGE OVER JACKET FROM 0.860 - 1.205 INCH.
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threaded Male Type; Aluminum (Body/Gland Nut), Nickel Plated Stainless Steel/Bronze (Grounding Ring), Elastomeric (Bushing/Collar Ring/Sealing Ring), Nylon (Removable Armor Stop) Material; 2.9 Inch; 3/4 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 0.86 to 1.205 Inch Cable Size; UL, CSA (Canada and Us), CSA C22.2 Approval; Ordinary Location, Oil and Gas Industry Application; 2.08 Inch Diameter; Water Tight; Bushing Throat Type; EXTREME[R] Brand; RoHS Compliant; Armor Cable Diameter 0.78 to 1.125 Inch; Strip Length 1-1/4 Inch; Color Silver; Gland Torque 600 Inch-Pound; Enclosure Rating Class I Div 2, NEMA 6P; Temperature Rating -40 to 194 Deg F; STE Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210822594
• SKU Name: t&b ste075
