Overview

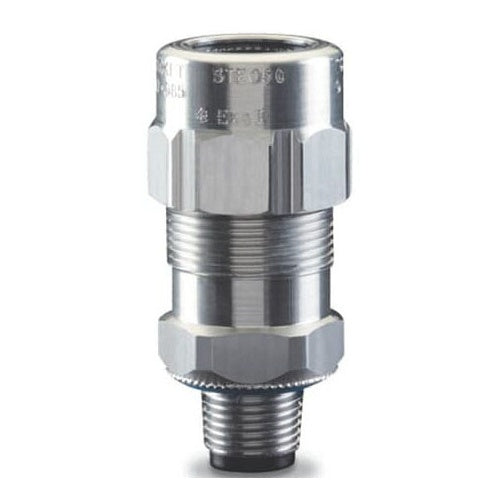

T&B STE150 Aluminum Extreme Fitting Teck Cable- 1-1/2"

Product Specifications

• UPC: 78621093036
• Diameter: 3.25 Inch
• Length: 4.29 Inch
• Material: Aluminum (Body/Gland Nut/Removable Armor Stop), Stainless Steel (Grounding Ring), Elastomer (Bushing/Collar Ring/Sealing Ring)
• Application: Hazardous Location
• Approval: UL, CSA
• Additional Information: Armor Cable Diameter 1.28 to 1.805 Inch; Strip Length 1-3/4 Inch; Color Silver; Gland Torque 1200 Inch-Pound; Enclosure Rating Class I Div 2, NEMA 6P; Temperature Rating -40 to 194 Deg F
• Catalog Number: STE150
• Brand Name: Star Teck Extreme[R]
• Model: STE
• Type: Straight
• Hub Size: 1-1/2 Inch
• Throat Type: Bushing
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 1.44 to 1.965 Inch
• Catalog Description: STAR TECK EXTREME ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1-1/2 INCH. RANGE OVER JACKET FROM 1.440 - 1.965 INCH.
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Straight Type; Aluminum (Body/Gland Nut/Removable Armor Stop), Stainless Steel (Grounding Ring), Elastomer (Bushing/Collar Ring/Sealing Ring) Material; 4.29 Inch; 1-1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 1.44 to 1.965 Inch Cable Size; UL, CSA Approval; Hazardous Location Application; 3.25 Inch Diameter; Bushing Throat Type; EXTREME[R] Brand; Armor Cable Diameter 1.28 to 1.805 Inch; Strip Length 1-3/4 Inch; Color Silver; Gland Torque 1200 Inch-Pound; Enclosure Rating Class I Div 2, NEMA 6P; Temperature Rating -40 to 194 Deg F; STE Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210930367
• SKU Name: t&b ste150
