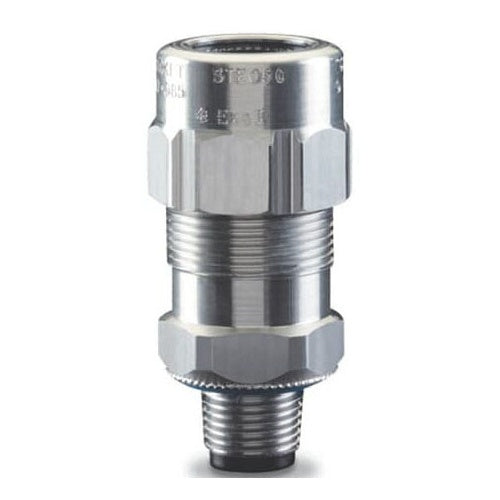

T&B STE250 Aluminum Extreme Fitting Teck Cable- 2-1/2"

Overview

T&B STE250 Aluminum Extreme Fitting Teck Cable- 2-1/2"

Product Specifications

• UPC: 78621099685
• Diameter: 4.75 Inch
• Length: 5.32 Inch
• Constructional Feature: Water Tight
• Material: Aluminum (Body/Gland Nut), Stainless Steel/Nickel Plated Bronze (Grounding Ring), Elastomeric (Bushing/Collar Ring/Sealing Ring), Nylon (Removable Armor Stop)
• Application: Ordinary Location
• Approval: UL, CSA
• Additional Information: Strip Length 2-1/2 Inch
• Catalog Number: STE250
• Brand Name: T&B
• Model: STE
• Type: Straight, Threaded Male
• Hub Size: 2-1/2 Inch
• Throat Type: Bushing
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 2.265 to 2.84 Inch
• Catalog Description: STAR TECK EXTREME ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 2-1/2 INCHES. RANGE OVER JACKET FROM 2.265 - 2.840 INCHES.
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Straight, Threaded Male Type; Aluminum (Body/Gland Nut), Stainless Steel/Nickel Plated Bronze (Grounding Ring), Elastomeric (Bushing/Collar Ring/Sealing Ring), Nylon (Removable Armor Stop) Material; 5.32 Inch; 2-1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 2.265 to 2.84 Inch Cable Size; UL, CSA Approval; Ordinary Location Application; 4.75 Inch Diameter; Water Tight; Bushing Throat Type; EXTREME[R] Brand; Strip Length 2-1/2 Inch; STE Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210996851
• SKU Name: t&b ste250
