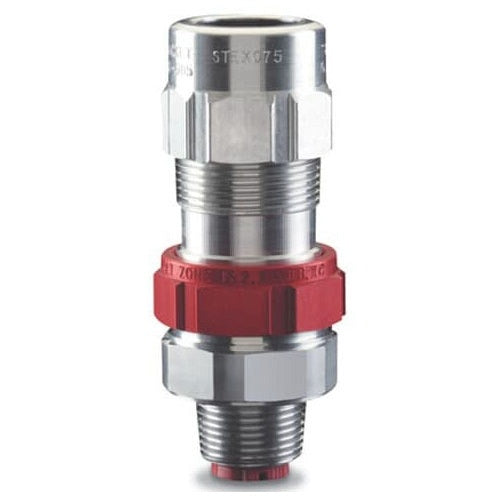

T&B STEX075 Aluminum Extreme Explosion-Proof Fitting Teck Cable- 3/4"

Overview

T&B STEX075 Aluminum Extreme Explosion-Proof Fitting Teck Cable- 3/4"

Product Specifications

• UPC: 78621095255
• Material: Copper-Free Aluminum
• Enclosure: NEMA 4/4X
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Constructional Feature Explosionproof, Water Tight, Water/Oil Resistant; Type Straight, Quick-Turn Lock; Throat Type Collar Ring, Bushing, Gland Nut; Color Silver/Red; Enclosure Class I Division 1 Groups A, B, C, D, Class II Division 1 Gro
• Catalog Number: STEX075
• Brand Name: T&B
• Model: STX
• Trade Size: 3/4 Inch Threaded
• Cable Type: Jacketed Metal Clad, MC-HL, Teck
• Cable Size: 0.6 to 0.985 Inch
• Diameter: 1.82 Inch
• Length: 3.4 Inch
• Catalog Description: STAR TECK EXTREME HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF OF OF 3/4 INCH. RANGE OVER JACKET FROM 0.600 - 0.985 INCH.
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum Material; 3.4 Inch; Jacketed Metal Clad, MC-Hl, TECK Cable Type; 0.6 to 0.985 Inch Cable Size; UL, CSA Approval; 1.82 Inch Diameter; NEMA 4/4X Enclosure; 3/4 Inch Threaded Trade Size; EXTREME[R] Brand; RoHS Compliant; Constructional Feature Explosionproof, Water Tight, Water/Oil Resistant; Type Straight, Quick-Turn Lock; Throat Type Collar Ring, Bushing, Gland Nut; Color Silver/Red; Enclosure Class I Division 1 Groups A, B, C, D, Class II Division 1 Groups E, F, G, Class III; Application Hazardous Location; STX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Terminator
• Unspsc: 39121311
• UPC 12 Digit: 786210952550
• SKU Name: t&b stex075
