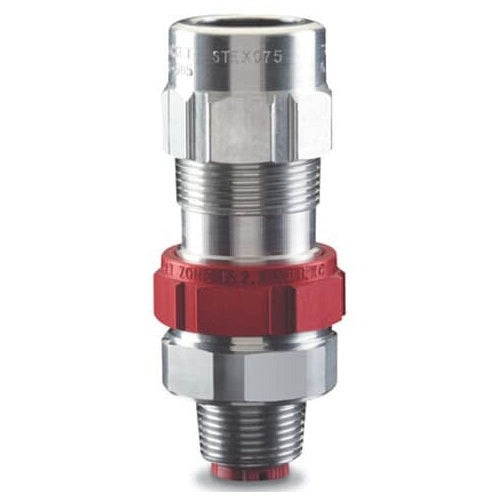

T&B STEX125 Aluminum Extreme Explosion-Proof Fitting Teck Cable- 1-1/4"

Overview

T&B STEX125 Aluminum Extreme Explosion-Proof Fitting Teck Cable- 1-1/4"

Product Specifications

• UPC: 78621099684
• Diameter: 2.51 Inch
• Constructional Feature: Concrete-Tight, Watertight, Corrosion/Water/Oil-Resistant
• Material: Aluminum
• Application: Hazardous Location
• Approval: UL 514B, CSA
• Additional Information: Applicable Standard NEC; Enclosure Type Class I Div 1 Div 2/Zone 2 Group a B C D, Class II Div 1 Div 2/Zone 22 Group E F G, Class III; Cable Range Over Armor 0.87 to 1.295 Inch; Throat Diameter 0.834 Inch (With Armored Stop), 1.065 Inch (Without Armored S
• Catalog Number: STEX125
• Brand Name: Star Teck Extreme[R]
• Model: STEX
• Type: Straight
• Hub Size: 1-1/4 Inch
• Throat Type: Collar Ring, Bushing, Gland Nut
• Cable Type: Armored, Metal Clad, Jacketed Cable
• Cable Size: 0.95 to 1.375 Inch
• Catalog Description: STAR TECK EXTREME HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1-1/4 INCH. RANGE OVER JACKET FROM 0.950 - 1.375 INCH.
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Straight Type; Aluminum Material; 1-1/4 Inch Hub Size; Armored, Metal Clad, Jacketed Cable Cable Type; 0.95 to 1.375 Inch Cable Size; UL 514B, CSA Approval; Hazardous Location Application; 2.51 Inch Diameter; Concrete-Tight, Watertight, Corrosion/Water/Oil-Resistant; Collar Ring, Bushing, Gland Nut Throat Type; EXTREME[R] Brand; Applicable Standard NEC; Enclosure Type Class I Div 1 Div 2/Zone 2 Group A B C D, Class II Div 1 Div 2/Zone 22 Group E F G, Class III; Cable Range Over Armor 0.87 to 1.295 Inch; Throat Diameter 0.834 Inch (With Armored Stop), 1.065 Inch (Without Armored Stop); Gland Torque 1000 lb-Inch; Strip Length 1-1/4 Inch; STEX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210996844
• SKU Name: t&b stex125
