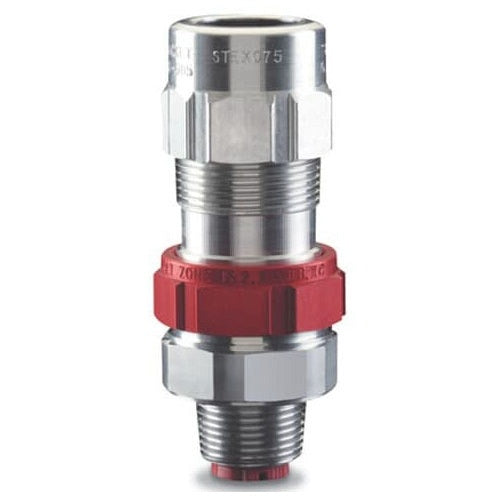

T&B STEX300 Aluminum Extreme Explosion-Proof Fitting Teck Cable- 3"

Product Specifications

• UPC: 78621099680
• Material: Copper-Free Aluminum
• Enclosure: NEMA 4/4X
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Constructional Feature Explosionproof, Water Tight, Water/Oil Resistant; Type Straight, Quick-Turn Lock; Throat Type Collar Ring, Bushing, Gland Nut; Color Silver/Red; Enclosure Type Class I Division 1 Groups A B C D, Class II Division 1 G
• Catalog Number: STEX300
• Brand Name: STAR TECK[R], STAR TECK EXTREME[R]
• Model: STX
• Trade Size: 3 Inch Threaded
• Cable Type: Jacketed Metal Clad, MC-HL, Teck
• Cable Size: 2.265 to 2.84 Inch
• Diameter: 5.1 Inch
• Length: 6.61 Inch
• Catalog Description: STAR TECK EXTREME HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 3 INCH. RANGE OVER JACKET FROM 2.265 - 2.840 INCHES.
• Category: Cable & Cord Grips
• Full Technical Description: Copper-Free Aluminum Material; 6.61 Inch; Jacketed Metal Clad, MC-Hl, TECK Cable Type; 2.265 to 2.84 Inch Cable Size; UL, CSA Approval; 5.1 Inch Diameter; NEMA 4/4X Enclosure; 3 Inch Threaded Trade Size; EXTREME[R] Brand; RoHS Compliant; Constructional Feature Explosionproof, Water Tight, Water/Oil Resistant; Type Straight, Quick-Turn Lock; Throat Type Collar Ring, Bushing, Gland Nut; Color Silver/Red; Enclosure Type Class I Division 1 Groups A B C D, Class II Division 1 Groups E F G, Class III; Application Hazardous Location; STX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Terminator
• Unspsc: 39121311
• UPC 12 Digit: 786210996806
• SKU Name: t&b stex300
