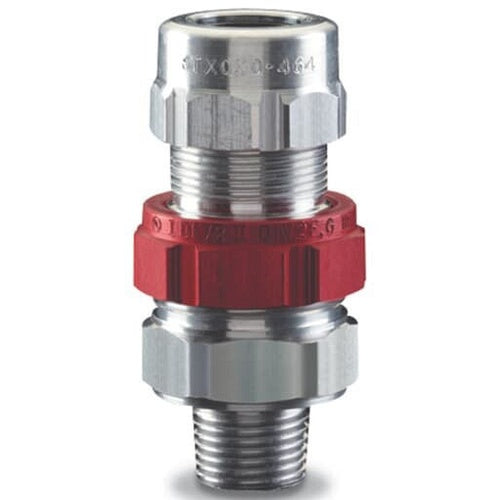

T&B STX050-464 Aluminum Jacketed Explosion-Proof Fitting Hub 1/2" .600-.760

Overview

T&B STX050-464 Aluminum Jacketed Explosion-Proof Fitting Hub 1/2" .600-.760

Product Specifications

• UPC: 78621090475
• Material: Silver and Red Copper-Free Aluminum
• Enclosure: Class I Div 2 Group A/B/C/D, Class II Div 1 E/F/G, Class III Div 1, NEMA 4/4X
• Approval: UL 2225/514B, CSA C22.2
• Additional Information: RoHS Compliant; Constructional Feature Explosionproof; Thread Size 0.79 Inch; Sealing Compound Volume 5; Range Over Armor 0.49 to 0.68 Inch; Temperature Rating -40 to 90 Deg C; Application Hazardous Location
• Catalog Number: STX050-464
• Brand Name: Star Teck XP[R]
• Model: STX
• Trade Size: 1/2 Inch Threaded
• Cable Type: Jacketed Metal Clad
• Cable Size: 0.6 to 0.76 Inch
• Diameter: 1.63 Inch
• Length: 3.29 Inch
• Catalog Description: STAR TECK HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1/2 INCH. RANGE OVER JACKET FROM 0.600 - 0.760 INCH.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Silver and Red Copper-Free Aluminum Material; 3.29 Inch; Jacketed Metal Clad Cable Type; 0.6 to 0.76 Inch Cable Size; UL 2225/514B, CSA C22.2 Approval; 1.63 Inch Diameter; Class I Div 2 Group A/B/C/D, Class II Div 1 E/F/G, Class III Div 1, NEMA 4/4X Enclosure; 1/2 Inch Threaded Trade Size; XP[R] Brand; RoHS Compliant; Constructional Feature Explosionproof; Thread Size 0.79 Inch; Sealing Compound Volume 5; Range Over Armor 0.49 to 0.68 Inch; Temperature Rating -40 to 90 Deg C; Application Hazardous Location; STX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Terminator
• Unspsc: 39121311
• UPC 12 Digit: 786210904757
• SKU Name: t&b stx050464
