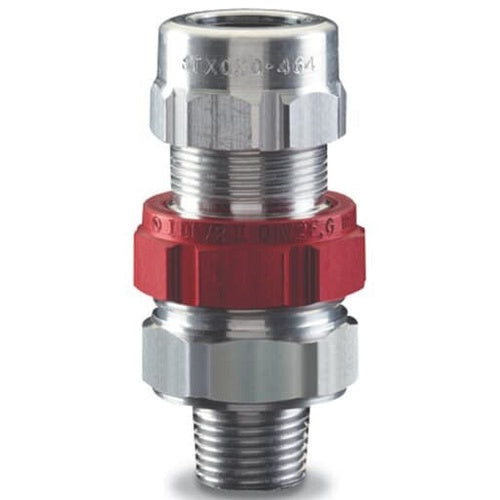

T&B STX075-465 Aluminum Jacketed Explosion-Proof Fitting Hub 3/4" .725-.885

Product Specifications

• UPC: 78621090474
• Enclosure: NEMA 4/4X
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Type Straight, Quick-Turn Lock; Throat Type Collar Ring, Bushing, Gland Nut; Constructional Feature Explosionproof, Water Tight, Water/Oil Resistant
• Catalog Number: STX075-465
• Brand Name: STAR TECK[R], STAR TECK XP[R]
• Model: STX
• Trade Size: 3/4 Inch NPT
• Cable Type: Jacketed Metal Clad, MC-HL, Teck
• Cable Size: 0.725 to 0.885 Inch
• Diameter: 1.82 Inch
• Material: Copper-Free Aluminum
• Catalog Description: STAR TECK HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 3/4 INCH. RANGE OVER JACKET FROM 0.725 - 0.885 INCH.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Copper-Free Aluminum Material; Jacketed Metal Clad, MC-Hl, TECK Cable Type; 0.725 to 0.885 Inch Cable Size; UL, CSA Approval; 1.82 Inch Diameter; NEMA 4/4X Enclosure; 3/4 Inch NPT Trade Size; XP[R] Brand; RoHS Compliant; Type Straight, Quick-Turn Lock; Throat Type Collar Ring, Bushing, Gland Nut; Constructional Feature Explosionproof, Water Tight, Water/Oil Resistant; STX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Terminator
• Unspsc: 39121311
• UPC 12 Digit: 786210904740
• SKU Name: t&b stx075465

Resources

• Technical Drawing
