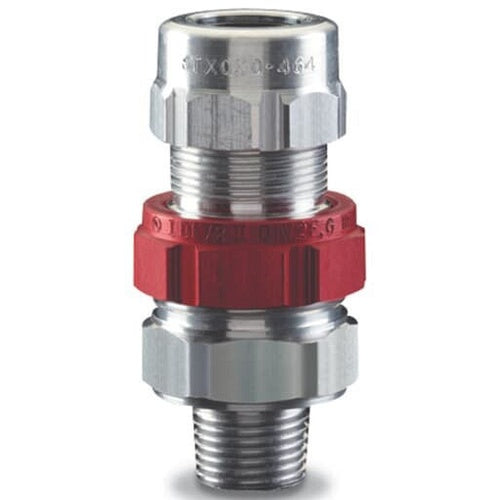

T&B STX100-467 Aluminum Jacketed Explosion-Proof Fitting Hub 1" .880-1.065

Overview

T&B STX100-467 Aluminum Jacketed Explosion-Proof Fitting Hub 1" .880-1.065

Product Specifications

• UPC: 78621090472
• Material: ALUMINUM
• Enclosure: CLASS I DIV 2 GROUP A B C D, CLASS II 2 GROUP F G, CLASS III, NEMA 4/4X
• Approval: UL, CSA
• Additional Information: APPLICATION HAZARDOUS LOCATION
• Catalog Number: STX100-467
• Brand Name: STAR TECK XP
• Model: STX
• Trade Size: 1 INCH
• Cable Type: JACKETED METAL CLAD
• Cable Size: 0.88 TO 1.065 INCH
• Diameter: 2.3 INCH
• Length: 2.83 INCH
• Catalog Description: STAR TECK HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1 INCH. RANGE OVER JACKET FROM 0.880 - 1.065 INCH.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Aluminum Material; 2.83 Inch; Jacketed Metal Clad Cable Type; 0.88 to 1.065 Inch Cable Size; UL, CSA Approval; 2.3 Inch Diameter; Class I Div 2 Group A B C D, Class II 2 Group F G, Class III, NEMA 4/4X Enclosure; 1 Inch Trade Size; XP[R] Brand; Application Hazardous Location; STX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Terminator
• Unspsc: 39121311
• UPC 12 Digit: 786210904726
• SKU Name: t&b stx100467

Resources

• Technical Drawing
