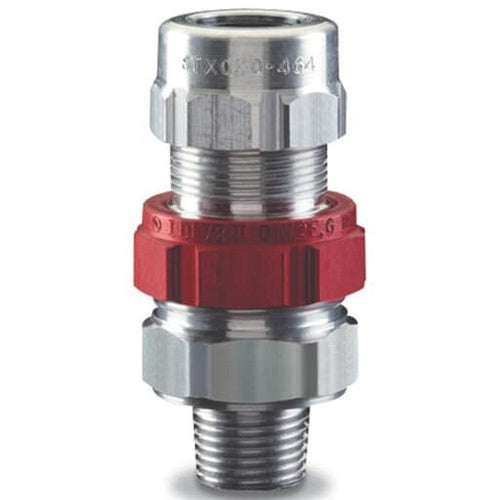

T&B STX150-470 Aluminum Jacketed Explosion-Proof Fitting 1-1/2" 1.350-1.625

Overview

T&B STX150-470 Aluminum Jacketed Explosion-Proof Fitting 1-1/2" 1.350-1.625

Product Specifications

• UPC: 78621090469
• Material: Aluminum
• Enclosure: Class I Div 2 Group A B C D, Class II 2 Group F G, Class III, NEMA 4/4X
• Approval: UL, CSA
• Additional Information: Application Hazardous Location
• Catalog Number: STX150-470
• Brand Name: Star Teck XP[R]
• Model: STX
• Trade Size: 1-1/2 Inch
• Cable Type: Jacketed Metal Clad
• Cable Size: 1.357 to 1.625 Inch
• Diameter: 3.26 Inch
• Length: 3.76 Inch
• Catalog Description: STAR TECK HAZARDOUS LOCATION ALUMINUM JACKETED CABLE FITTING. HUB SIZE OF 1-1/2 INCH. RANGE OVER JACKET FROM 1.350 - 1.625 INCH.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Aluminum Material; 3.76 Inch; Jacketed Metal Clad Cable Type; 1.357 to 1.625 Inch Cable Size; UL, CSA Approval; 3.26 Inch Diameter; Class I Div 2 Group A B C D, Class II 2 Group F G, Class III, NEMA 4/4X Enclosure; 1-1/2 Inch Trade Size; XP[R] Brand; Application Hazardous Location; STX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Armored/Metal Clad Cable Terminator
• Unspsc: 39121311
• UPC 12 Digit: 786210904696
• SKU Name: t&b stx150470

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
