Overview

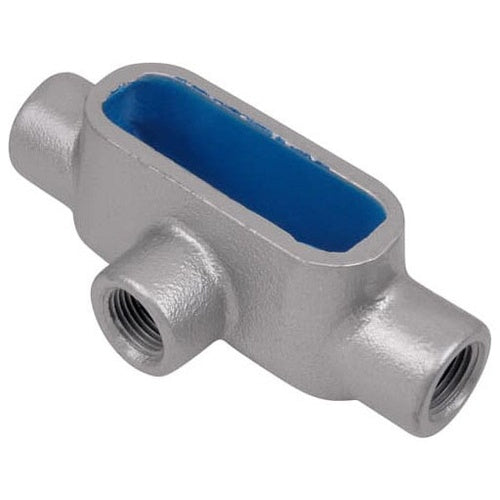

T&B T17 1/2" Bluekote T-Type Conduit Body Form-7 Iron

Product Specifications

• UPC: 78621092497
• Size: 5.6 Inch Length x 2.35 Inch Width x 1.8 Inch Height
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Catalog Number: T17
• Brand Name: BlueKote[R]
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1/2 Inch
• Catalog Description: 1/2 INCH FORM 7 (T) CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Material; 5.6 Inch Length X 2.35 Inch Width X 1.8 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; Tee Hub Location; Form 7 Form Type; Tee Side Access Opening; BLUEKOTE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210924977
• SKU Name: t&b t17

Resources

• Manufacturer Spec Sheet
