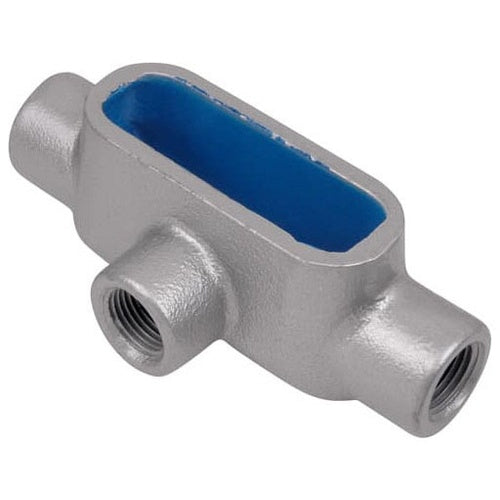

T&B T57 1-1/2" Bluekote Conduit Body Form 7

Product Specifications

• UPC: 78621093443
• Hub Size: 1-1/2 Inch
• Size: 8.6 Inch Length x 3.8 Inch Width x 2.6 Inch Height
• Installation: Threaded
• Material: Zinc Plated, Acrylic Epoxy Coated and Internal PTFE Based Bluekote Coated Gray Iron (Body), Stainless Steel Screw, Neoprene Gasket
• Form Type: Form 7
• Approval: UL 514A, UL 514B, UL E2969, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: T57
• Brand Name: Elastimold
• Model: T
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: 1-1/2 INCH FORM 7 (T) CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Plated, Acrylic Epoxy Coated and Internal PTFE Based Bluekote Coated Gray Iron (Body), Stainless Steel Screw, Neoprene Gasket Material; 8.6 Inch Length X 3.8 Inch Width X 2.6 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A, UL 514B, UL E2969, CSA C22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; Tee Hub Location; Form 7 Form Type; Tee Side Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D; T Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210934433
• SKU Name: t&b t57
