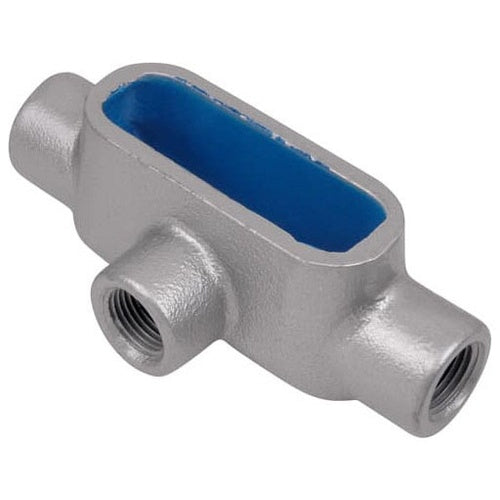

T&B T67 2" Bluekote T-Type Conduit Body Form-7 Iron

Overview

T&B T67 2" Bluekote T-Type Conduit Body Form-7 Iron

Product Specifications

• UPC: 78621093444
• Approval: UL 514A/514BE2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: T67
• Configuration: T
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 2 Inch
• Installation: Threaded
• Material: Sand Cast Zinc Plated Aluminum Acrylic Coated Epoxy Powder Coated Gray Iron Alloy (Body), Neoprene (Gasket)
• Form Type: Form 7
• Catalog Description: 2 INCH FORM 7 (T) CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated Aluminum Acrylic Coated Epoxy Powder Coated Gray Iron Alloy (Body), Neoprene (Gasket) Material; Rigid/Imc Conduit Used on; 2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/514BE2969, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210934440
• SKU Name: t&b t67

Resources

• Manufacturer Spec Sheet
