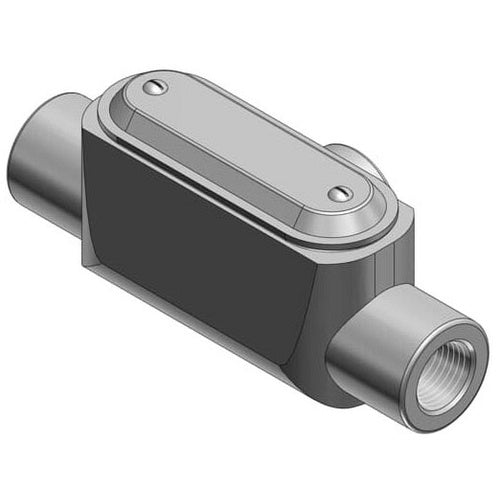

T&B T67CG-TB 2" C-Body Cover & Gasket T Form-7

Overview

T&B T67CG-TB 2" C-Body Cover & Gasket T Form-7

Product Specifications

• UPC: 78621091678
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Class 30 Zinc Plated with Epoxy Powder Coated Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Includes Cover, Neoprene Gasket, Stainless Steel Screw
• Catalog Number: T67CG-TB
• Brand Name: BlueKote[R]
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 2 Inch
• Catalog Description: 2 INCH FORM 7 (T) PRE-ASSEMBLED CONDUIT BODY, COVER AND GASKET, BODY MATERIAL GRAY IRON/ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING, COVER MATERIAL AND FINISH STAMPED STEEL/ZINC PLATING, NEOPRENE GASKET
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Class 30 Zinc Plated With Epoxy Powder Coated Gray Iron Alloy Material; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; Tee Hub Location; Form 7 Form Type; Tee Side Access Opening; BLUEKOTE[R] Brand; Includes Cover, Neoprene Gasket, Stainless Steel Screw
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210916781
• SKU Name: t&b t67cgtb

Resources

• Manufacturer Spec Sheet
