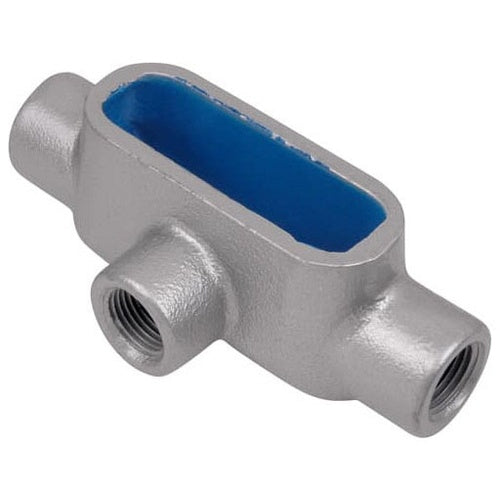

T&B T88TB 3" Conduit Body Gray Iron T Form-8

Overview

T&B T88TB 3" Conduit Body Gray Iron T Form-8

Product Specifications

• UPC: 78621016625
• Installation: THREADED
• Material: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW
• Form Type: FORM 8
• Approval: UL 514-A, UL 514-B, CSA 22.2
• Used On: RIGID CONDUIT
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WC-586D
• Catalog Number: T88TB
• Access Opening: SIDE
• Configuration: T
• Cover Type: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY (IRON ALLOY), STAMPED ZINC PLATED, CLEAR CHROMATE COATED (STEEL), SCREW ON
• Hub Location: TEE
• Number Of Hubs: 3
• Hub Size: 3 INCH
• Size: 15-5/8 INCH L X 6-11/16 INCH W X 4-13/16 INCH H
• Catalog Description: 3 INCH FORM 8 (T) CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray Iron Material; Rigid/Imc Conduit Used on; 3 Inch Hub Size; T Configuration; UL E2969, CSA Approval; Zinc Plated With Epoxy Powder Coat Cover Type; Tee Hub Location; Form 8 Form Type; Tee Side Access Opening; Includes Covers, Gaskets and Screw
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210166254
• SKU Name: t&b t88tb
