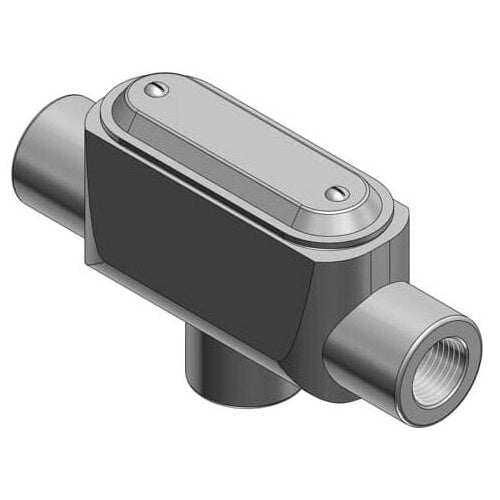

T&B TB57CG-TB 1-1/2" C-Body, Cover & Gasket, TB, Form-7

Overview

T&B TB57CG-TB 1-1/2" C-Body, Cover & Gasket, TB, Form-7

Product Specifications

• UPC: 78621091702
• Installation: Threaded
• Material: PTFE Based Bluekote Coated Zinc Plating Class 30 Gray Iron Alloy Interior, Acrylic Epoxy Coated Zinc Plating Class 30 Gray Iron Alloy Exterior, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL 514A, UL 514B, UL E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket
• Catalog Number: TB57CG-TB
• Brand Name: BlueKote[R]
• Access Opening: Tee Back
• Configuration: TB
• Cover Type: Stamped Steel
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1-1/2 Inch
• Catalog Description: 1-1/2 INCH FORM 7 (TB) PRE-ASSEMBLED CONDUIT BODY, COVER AND GASKET, BODY MATERIAL GRAY IRON/ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING, COVER MATERIAL AND FINISH STAMPED STEEL/ZINC PLATING
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Zinc Plating Class 30 Gray Iron Alloy Interior, Acrylic Epoxy Coated Zinc Plating Class 30 Gray Iron Alloy Exterior, Neoprene Gasket, Stainless Steel Screw Material; Rigid/Imc Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A, UL 514B, UL E2969, CSA C22.2 Approval; Stamped Steel Cover Type; Tee Hub Location; Form 7 Form Type; Tee Back Access Opening; BLUEKOTE[R] Brand; Includes Cover, Gasket
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210917023
• SKU Name: t&b tb57cgtb

Resources

• Manufacturer Spec Sheet
