Overview

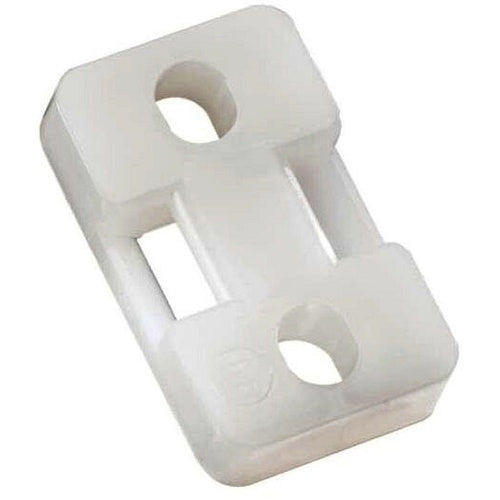

T&B TC815-TB Inline Mounting Base 1.2X.8" Natural Nylon Screw

Product Specifications

• UPC: 78621082629
• Mounting Hole Size: #10 Screw
• Standard Package: 1000
• Approval: UL
• Used On: Cable Tie
• Additional Information: Temperature Rating -40 to 185 Deg F
• Catalog Number: TC815-TB
• Model: TC
• Type: Screw Mount
• Material: Nylon 6.6
• Tie Width: 0.301 Inch
• Length: 1.125 Inch
• Width: 0.75 Inch
• Color: Natural
• Catalog Description: IN-LINE MOUNTING BASE, NATURAL NYLON 6.6 FOR TEMPERATURES UP TO 85 DEGREES CELSIUS (185 F), LENGTH OF 32.0MM (1.26 INCHES), WIDTH OF 19.56MM (0.77 INCHES), HEIGHT OF 6.6MM (0.26 INCHES), SCREW MOUNTING METHOD, #10 SCREW
• Category: Cable Ties & Wraps
• Full Technical Description: Screw Mount Type; Nylon 6.6 Material; Natural Color; 1.125 Inch; 0.75 Inch; Cable Tie Used on; 0.301 Inch Tie Width; UL Approval; 1000 Standard Package; #10 Screw Mounting Hole Size; Temperature Rating -40 to 185 Deg F; TC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Cable Tie Mount
• Unspsc: 39121717
• UPC 12 Digit: 786210826295
• SKU Name: t&b tc815tb

Resources

• Manufacturer Spec Sheet
