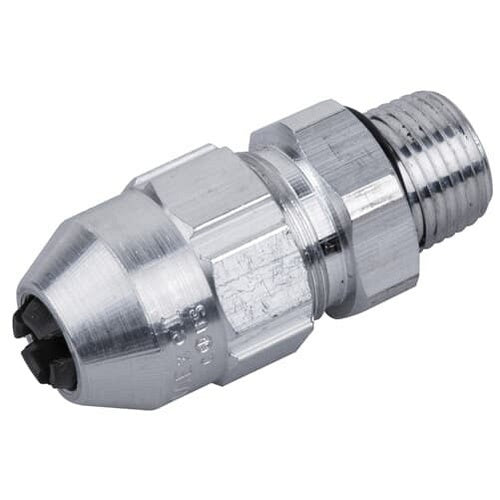

T&B TCF075-54AL Tray & Cord-3/4" Aluminum 0.40-0.54

Overview

T&B TCF075-54AL Tray & Cord-3/4" Aluminum 0.40-0.54

Product Specifications

• UPC: 78621087925
• Additional Information: Throat Size 0.54 Inch Dia
• Catalog Number: TCF075-54AL
• Brand Name: Silver Grip[R]
• Model: TCF
• Thread Size: 3/4 Inch
• Material: Aluminum Body, Neoprene Bushing
• Cord Size: 0.4 to 0.54 Inch
• Approval: CSA (Canada and US)
• Application: Hazardous Location
• Catalog Description: TRAY/CORD FITTING, HUB SIZE NPT 3/4 INCH, CABLE DIAMETER 0.400 TO 0.540 INCH, THROAT DIAMETER 0.540 INCH, ALUMINUM
• Category: Ladder Cable Tray Accessories
• Full Technical Description: Aluminum Body, Neoprene Bushing Material; CSA (Canada and Us) Approval; Hazardous Location Application; 3/4 Inch Thread Size; 0.4 to 0.54 Inch Cord Size; Silver GRIP[R] Brand; Throat Size 0.54 Inch Dia; TCF Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210879253
• SKU Name: t&b tcf07554al
