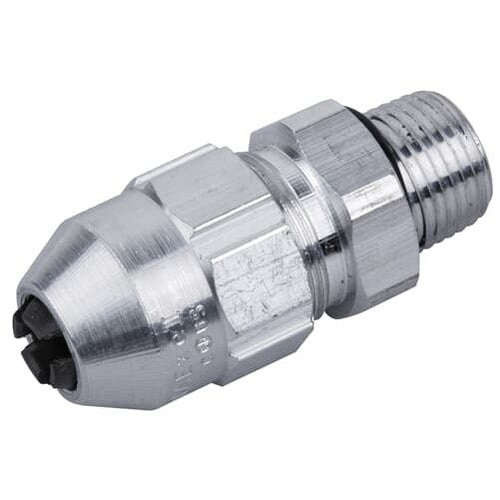

T&B TCF075-67AL Tray & Cord-3/4" Aluminum 0.54-0.67

Overview

T&B TCF075-67AL Tray & Cord-3/4" Aluminum 0.54-0.67

Product Specifications

• UPC: 78621087940
• Application: Hazardous and Industrial Location
• Additional Information: Constructional Feature Corrosion Resistant, Non-Magnetic Aluminum; Throat Diameter 0.54 Inch; Enclosure Rating NEMA 4/4X, IP66
• Catalog Number: TCF075-67AL
• Brand Name: T&B
• Model: TCF
• Thread Size: 3/4 Inch
• Material: Aluminum (Body), Neoprene (Bushing)
• Cord Size: 0.54 to 0.67 Inch
• Size: 1.63 Inch Diameter x 3.08 Inch Length
• Approval: CSA (Canada and US)
• Catalog Description: TRAY/CORD FITTING, HUB SIZE NPT 3/4 INCH, CABLE DIAMETER 0.540 TO 0.670 INCH, THROAT DIAMETER 0.780 INCH, ALUMINUM
• Category: Ladder Cable Tray Accessories
• Full Technical Description: Aluminum (Body), Neoprene (Bushing) Material; 1.63 Inch Diameter X 3.08 Inch Length Size; CSA (Canada and Us) Approval; Hazardous and Industrial Location Application; 3/4 Inch Thread Size; 0.54 to 0.67 Inch Cord Size; Silver GRIP[R] Brand; Constructional Feature Corrosion Resistant, Non-Magnetic Aluminum; Throat Diameter 0.54 Inch; Enclosure Rating NEMA 4/4X, IP66; TCF Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210879406
• SKU Name: t&b tcf07567al

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
