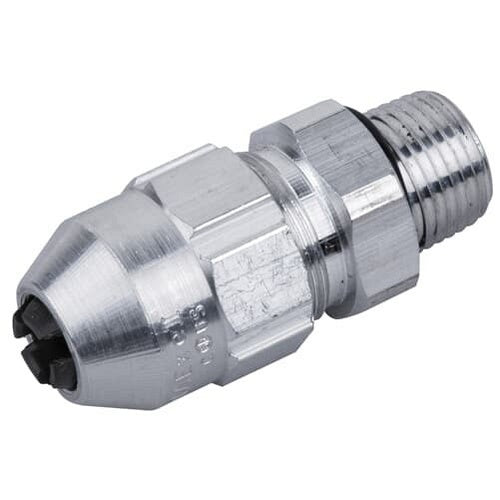

T&B TCF150-140AL Tray & Cord 1-1/2" Aluminum 1.14-1.40

Overview

T&B TCF150-140AL Tray & Cord 1-1/2" Aluminum 1.14-1.40

Product Specifications

• UPC: 78621093854
• Application: Hazardous and Industrial Location
• Additional Information: Constructional Feature Corrosion Resistant, Non-Magnetic Aluminum; Throat Diameter 0.54 Inch; Enclosure Rating NEMA 4/4X, IP66
• Catalog Number: TCF150-140AL
• Brand Name: Silver Grip[R]
• Model: TCF
• Thread Size: 1-1/2 Inch
• Material: Aluminum (Body), Neoprene (Bushing)
• Cord Size: 1.14 to 1.4 Inch
• Size: 3.09 Inch Diameter x 4.61 Inch Length
• Approval: CSA (Canada and US)
• Catalog Description: TRAY/CORD FITTING, HUB SIZE NPT 1-1/2 INCH, CABLE DIAMETER 1.140 TO 1.400 INCH, THROAT DIAMETER 1.470 INCH, ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Aluminum (Body), Neoprene (Bushing) Material; 3.09 Inch Diameter X 4.61 Inch Length Size; CSA (Canada and Us) Approval; Hazardous and Industrial Location Application; 1-1/2 Inch Thread Size; 1.14 to 1.4 Inch Cord Size; Silver GRIP[R] Brand; Constructional Feature Corrosion Resistant, Non-Magnetic Aluminum; Throat Diameter 0.54 Inch; Enclosure Rating NEMA 4/4X, IP66; TCF Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210938547
• SKU Name: t&b tcf150140al

Resources

• Manufacturer Spec Sheet
• Technical Drawing
