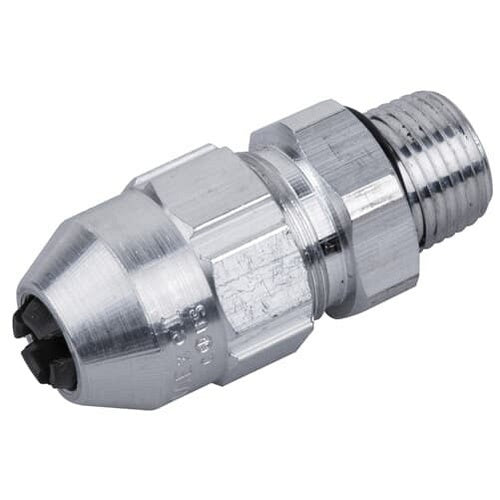

T&B TCF250-252AL 2-1/2" Aluminum Tray&Cord

Overview

T&B TCF250-252AL 2-1/2" Aluminum Tray&Cord

Product Specifications

• UPC: 78620989380
• Application: Hazardous Location
• Additional Information: Throat Size 2.466 Inch Dia; Constructional Feature Corrosion Resistant
• Catalog Number: TCF250-252AL
• Brand Name: Silver Grip[R]
• Model: TCF
• Type: Straight
• Thread Size: 2-1/2 Inch
• Material: Aluminum (Body), Neoprene (Bushing/O-Ring)
• Cord Size: 0.94 to 1.09 Inch
• Approval: CSA
• Catalog Description: TRAY/CORD FITTING, HUB SIZE NPT 2-1/2 INCH, CABLE DIAMETER 2.120 TO 2.520 INCH, THROAT DIAMETER 2.466 INCH, ALUMINUM
• Category: Cable Ties & Wraps
• Full Technical Description: Straight Type; Aluminum (Body), Neoprene (Bushing/O-Ring) Material; CSA Approval; Hazardous Location Application; 2-1/2 Inch Thread Size; 0.94 to 1.09 Inch Cord Size; Throat Size 2.466 Inch Dia; Constructional Feature Corrosion Resistant; TCF Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786209893802
• SKU Name: t&b tcf250252al
