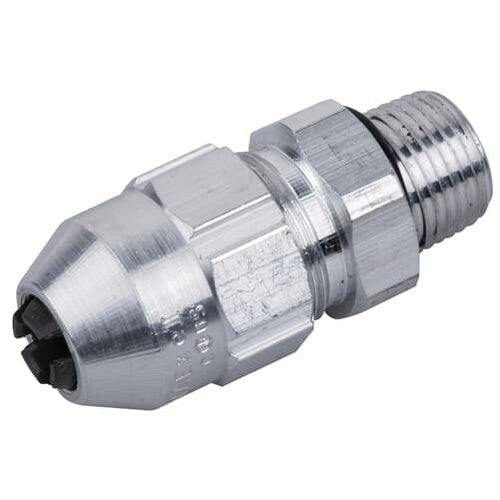

T&B TCF300-330AL 3" Tray & Cord Fitting

Overview

T&B TCF300-330AL 3" Tray & Cord Fitting

Product Specifications

• UPC: 78620989383
• Application: Hazardous Location
• Additional Information: Throat Size 3.068 Inch Dia; Constructional Feature Corrosion Resistant
• Catalog Number: TCF300-330AL
• Brand Name: Silver Grip[R]
• Model: TCF
• Type: Straight
• Thread Size: 3 Inch
• Material: Aluminum (Body), Neoprene (Bushing/O-Ring)
• Cord Size: 2.38 to 2.78 Inch
• Approval: CSA
• Catalog Description: TRAY/CORD FITTING, HUB SIZE NPT 3 INCH, CABLE DIAMETER 2.900 TO 3.300 INCH, THROAT DIAMETER 3.068 INCH, ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Aluminum (Body), Neoprene (Bushing/O-Ring) Material; CSA Approval; Hazardous Location Application; 3 Inch Thread Size; 2.38 to 2.78 Inch Cord Size; Throat Size 3.068 Inch Dia; Constructional Feature Corrosion Resistant; TCF Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786209893833
• SKU Name: t&b tcf300330al
