Product information
Overview

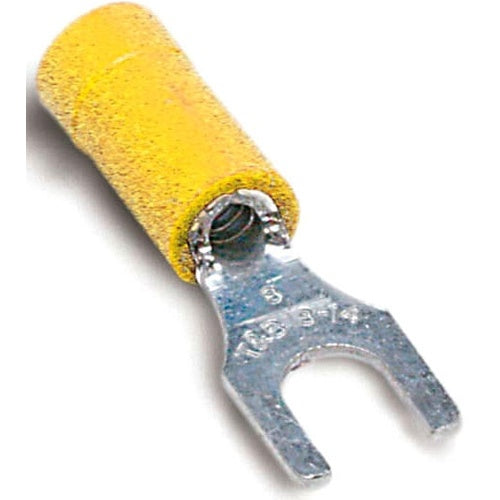

T&B TV10-10F Vinyl Insulated Fork Terminal
Product Specifications
- UPC: 78620993738
- Temperature Rating: 75 Deg C
- Standard Package: 500 per Outer Pack
- Approval: UL
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.004 Inch Length x 0.283 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Electro Tin Plated
- Catalog Number: TV10-10F-L
- Brand Name: Catamount
- Type: Locking, Funnel Entry
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Vinyl Insulated
- Stud Size: #10
- Catalog Description: VINYL INSULATED FORK TERMINAL, LENGTH 1.025 INCHES, WIDTH .375 INCHES, MAXIMUM INSULATION .210, BOLT SIZE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Locking, Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL Approval; 75 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.004 Inch Length X 0.283 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Electro Tin Plated
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Products
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786209937384
- SKU Name: t&b tv1010fl
