Overview

Enhanced corrosion resistance for longevity, High load-bearing capacity, Easy installation with user-friendly design

Product Specifications

• UPC: 78621082539
• Bundle Diameter: 1.125 INCH
• Length: 5.96 INCH
• Length In Inch: 5.96
• Width: 0.14 INCH
• Standard Package: 1000
• Approval: UL
• Length In Inch Uom: in
• Additional Information: OPERATING TEMPERATURE -40 T0 185 DEG F

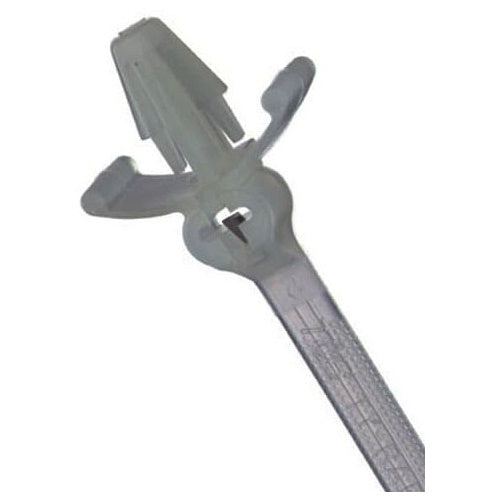

• Catalog Number: TY54M
• Brand Name: Ty-Rap.
• Type: ONE PIECE, LOCKING
• Material: NYLON 6/6
• Clip Material: STAINLESS STEEL
• Color: NATURAL
• Mounting Hole Size: 3/16 INCH
• Tensile Strength: 40 LB
• Catalog Description: PUSH MOUNT CABLE TIE, NATURAL POLYAMIDE (NYLON 6.6) FOR TEMPERATURES UP TO 85 DEGREES CELSIUS (185 F) FOR INDOOR APPLICATIONS, LENGTH OF 151.38MM (5.964 INCHES), WIDTH OF 3.71MM (0.146 INCHES), THICKNESS OF 1.321MM (0.052 INCHES), MOUNTING HOLE SIZE OF 4.77MM (0.188 INCHES), TENSILE STRENGTH RATING OF 180 NEWTONS (40 POUNDS), BULK PACK
• Category: Cable Ties & Wraps
• Full Technical Description: One Piece, Locking Type; Nylon 6/6 Material; Natural Color; 5.96 Inch; 5.96 Length in Inch; 0.14 Inch; UL Approval; 1000 Standard Package; 40 lb Tensile Strength; 3/16 Inch Mounting Hole Size; 1.125 Inch Bundle Diameter; Stainless Steel Clip Material; Ty-Rap. Brand; Operating Temperature -40 T0 185 Deg F; Length in Inch - Uom in
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mounting Hole Tie
• Unspsc: 39121703
• UPC 12 Digit: 786210825397
• SKU Name: T&B TY54M
