Superstrut U501-EG Electro-Galvanized Beam ClAMP-Electro.Galvanized

Overview

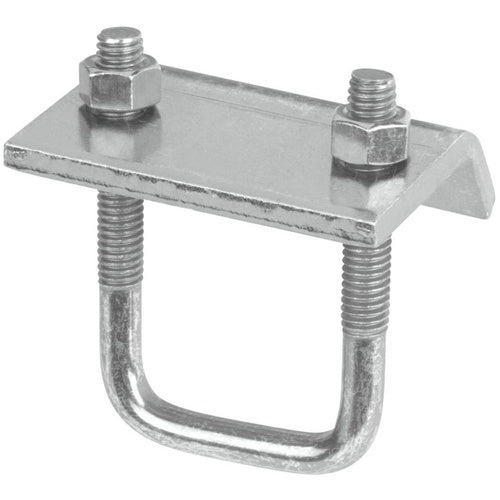

Superstrut U501-EG Electro-Galvanized Beam Clamp-Electro.Galvanized

Product Specifications

• UPC: 61601328873
• Application: Mounting Channel
• Additional Information: Overall Dimension 3-3/16 Inch Height; Plate Size 2-3/8 Inch Length x 3 Inch Width x 13/16 Inch Thickness; Used On A-1200, B-1200, C-1200, A-1400, B-1400 and B-1402 Series Channels
• Catalog Number: U501 EG
• Brand Name: Superstrut
• Model: U501
• Type: Double U
• Supplied With Screw: Yes
• Load Capacity: 2150 Pound
• Material: Steel
• Finish: Silver Galvanized/Electrogalvanized
• Catalog Description: CLAMP, CHANNEL TO BEAM, HEIGHT 3-3/16 INCHES, PLATE WIDTH 3 INCHES, PLATE LENGTH 2-3/8 INCHES, PLATE THICKNESS 13/16 INCH, ELECTRO-GALVANIZED STEEL, FOR USE WITH A-1200, B-1200, C-1200, A-1400, B-1400 AND B-1402 SERIES CHANNELS
• Category: Channel & Strut Fittings
• Full Technical Description: Carbon Steel Material; Silvergalv Finish; Mounting Channel Application; Hardened Process; 2150 Pound Load Capacity; SILVERGALV[TM] Brand; Height 3-3/16 Inch; Plate Size 2-3/8 Inch Length X 3 Inch Width X 13/16 Inch Thickness; Used on A-1200/A-1400/B-1200/B-1400/C-1200/B-1402 Series Channel; U501 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 616013288733
• SKU Name: t&b u501eg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
